Laser Cutting System

Can't See the Movie Above? Download as MP4

AUTOMATION DIVISION
and FANUC
CNC AMERICA

We provide full warranty, after sale service & extended service contracts.

This applies particularly to our LCF Lasers where the F stands for complete integrated FANUC systems.

The warranty on the CNC and Oscillator is 12 months from start up.

Mirrors are 6 months from start up.

Our warranty support now offers technicians available form numerous locations in North America

Features | Specifications | Operating Modes | PRC Standard Models

LC2 LASER with Load/Unload shuttle table
LCF-1530 LASER with Load/Unload shuttle table

FEATURES
Auto focus. C Axis

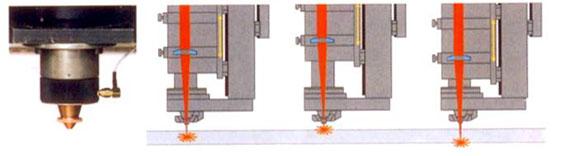

The CNC control manages the head height to accommodate changes in the height of the material during cutting. It is integrated into the Z axis and is signaled by a non contact sensor.

High precision rack and gear servo drives on each side of the table ensure rigid control of motion in all directions. Acceleration and deceleration forces are precisely controlled by this method.
The precision linear guides provide long life, low friction and high speed operation.

Load and Unload Dual Table / Shuttle

The Load/ Unload table lets the operator safely load or unload another sheet while cutting is in progress.
Pneumatic clamps locate and secure the sheet in position.

Load and Unload Dual Table / Shuttle

Hydraulic Bumpers on Table Travel

Hydraulic bumpers cushion possible crashes or shocks when the drives run X or Y to the limits.
These also protect the lens from damage.

CNC Controls

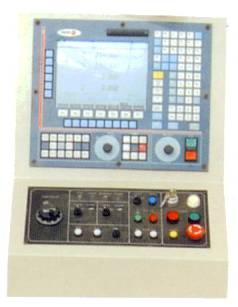

We offer a choice of controls so that you can apply a CNC that is already familiar to your operators. These are some of the choices. Fanuc, Fagor or Siemens. These feature 32 bits processor, graphics display, RS232 and 485 data ports. On board diagnostics helps when trouble shooting.

Load and Unload Dual Table / Shuttle

SPECIFICATIONS

MODEL #	LC-1530	LC-2030	LC-2040
CUTTING SIZE	1500 x 3000	2000 x 3000	2000 x 4000
X AXIS mm	3000	3000	4000
Y AXIS mm	1500	2000	2000
Z AXIS mm	150	150	150
X,Y Positioning	+- 0.05mm/0.002”	+- 0.05mm/0.002”	+- 0.1mm/ 0.004”
X,Y repeatability	0.005/0.0002”	0.005/0.0002”	0.05/0.002”
X,Y rapid speed	50m/min = 2000”/min
X,Y Max. cutting	15M /min = 600”/min
Loading cap.	750kg/ 1650lb	1900kg/2100lb	1250kg/2750lb
Machine weight	7000kg/ 15500lb	8000kg/17500lb	9000kg/ 20,000lb
Laser power	1000 to 7000 watts

Control System;
Siemens, Fanuc, Fagor CNC and PLC.
CAD/ CAM Software of your choice.
On board diagnostics
X and Y axis ball screws and THK hardened linear guides.

PRC LASER
CO2 Industrial Laser by PRC of Landing New Jersey.
The PRC Laser system is integrated by their technicians as part of our turn key package.
You can choose from 1500 to 7000 watts of power.

Features of the PRC system
The PRC product line consists of Fast-Axial Flow, DC Excited, CO2 lasers with power levels from 1000-8000 Watts. Also offered is a wide variety of enclosures and control interface options, including an interface card that installs into an ISA slot of any Windows PC.

PRC lasers are engineered to operate 24-Hours a day, seven days a week for months at a time, making them the perfect choice for demanding three-shift applications! PRC lasers can be found at the heart of a wide variety of applications.
PRC Features:

PRC's patented oil and maintenance free, TURBOFLOW®; compressor.
Long optic life.
Microprocessor based controls with built in diagnostic routines
Unmatched pulsing performance
Reliable and efficient DC Excitation
Continuous operation capability
24-Hour technical support

Operating Modes

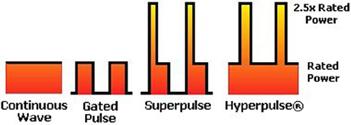

PRC Lasers offer three distinct pulse modes in addition to Continuous Wave. The different pulse modes can provide processing advantages when piercing, cutting or welding various materials. The ultra-fast response of our high-voltage section provides the sharpest pulsing wave forms available.

Turbine Compressor

PRC's patented TURBOFLOW® compressor is an oil-free, low-speed turbine designed specifically for use in industrial lasers. Elimination of the oil bath and gear boxes associated with many fast flow lasers helps PRC lasers provide the industry's longest optic lifetime, and allows our resonator electrodes and glass to last the life of the laser.

Permanently lubricated ceramic bearings, and an absence of rotating shaft seals ensure the turbine itself a long service life with virtually no maintenance.

Optical Configurations:
Every laser design has a unique optical cavity that provides a different power distribution within the laser beam it generates. This power distribution is known as the laser's "Beam Mode".
The PRC product line offers three different beam modes of selectable diameters and propagations.


TEM 00 Mode (Gaussian Beam) 1000-3000 Watts	"D" Mode (Dimodal Beam) 1000-4000 Watts	"Q" Mode (Quadramodal Beam) 2500-6000 Watts

Different modes may provide advantages for certain applications. For example a TEM 00 mode laser will provide deeper penetration welding with a thinner weld bead, while a D mode would provide a slightly wider weld bead. Contact a PRC applications expert to determine which mode and power level is best for your application.

PRC Standard Models

XL 1000 & 1500 XL 1000

Designed specifically for the thin metal and nonmetal processing markets. The XL series packs additional power into a compact package.

TEM "00" Low M² high quality beam
Standard 10.6 Micron (9.25µ, 9.6µ & 10.25µ Also Available)
Optional touch screen interface
Runs on separate or pre-mixed gases

Permanently lubricated ceramic bearings, and an absence of rotating shaft seals ensure the turbine itself a long service life with virtually no maintenance.

STS 2000/2500
